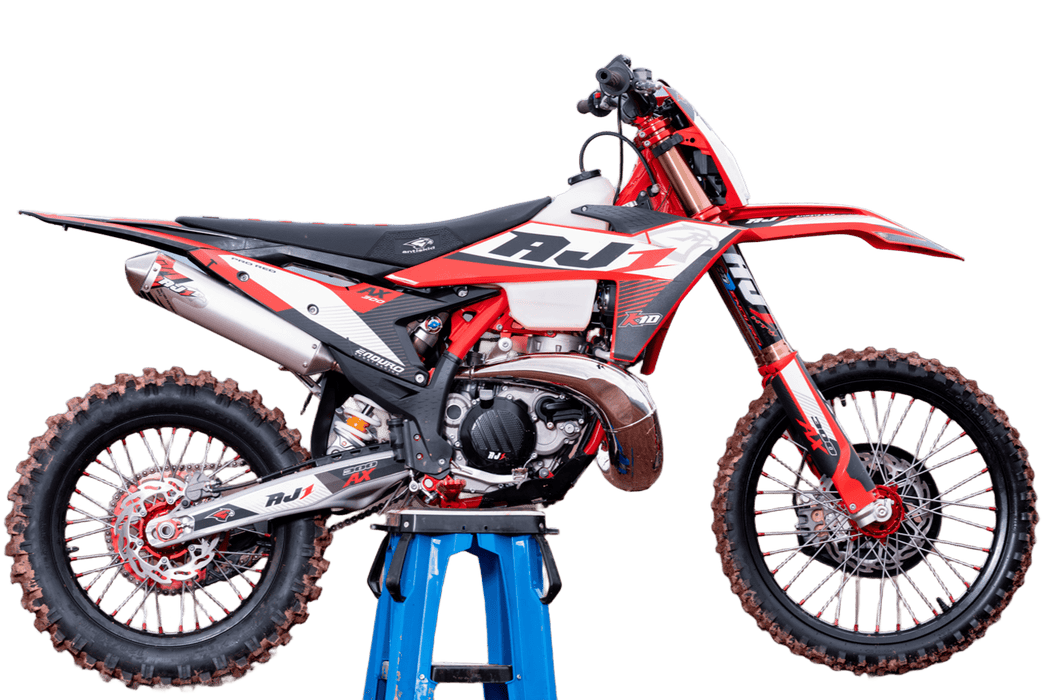

AJ1-K10 AX300 Dirt Bike

L x W x H: 2190 x 820 x 1300 mm
Seat Height: 950 mm
Wheelbase: 1480 mm
Ground Clearance: 330 mm
Fuel Capacity: 8.5 Liters
Dry Weight: 115 kg

Engine & Power

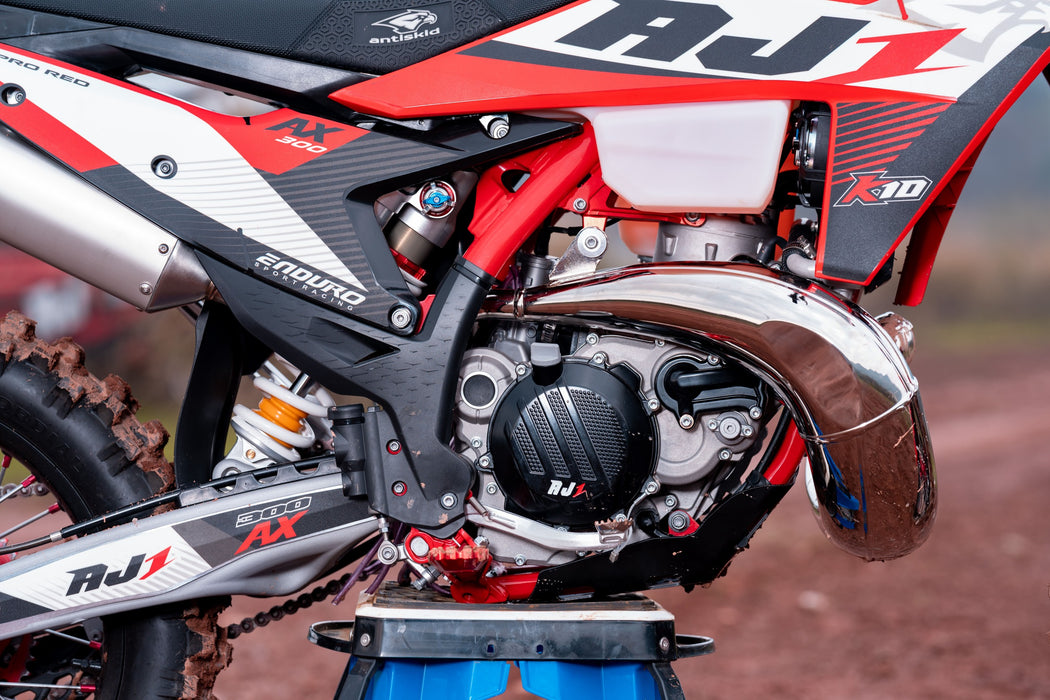

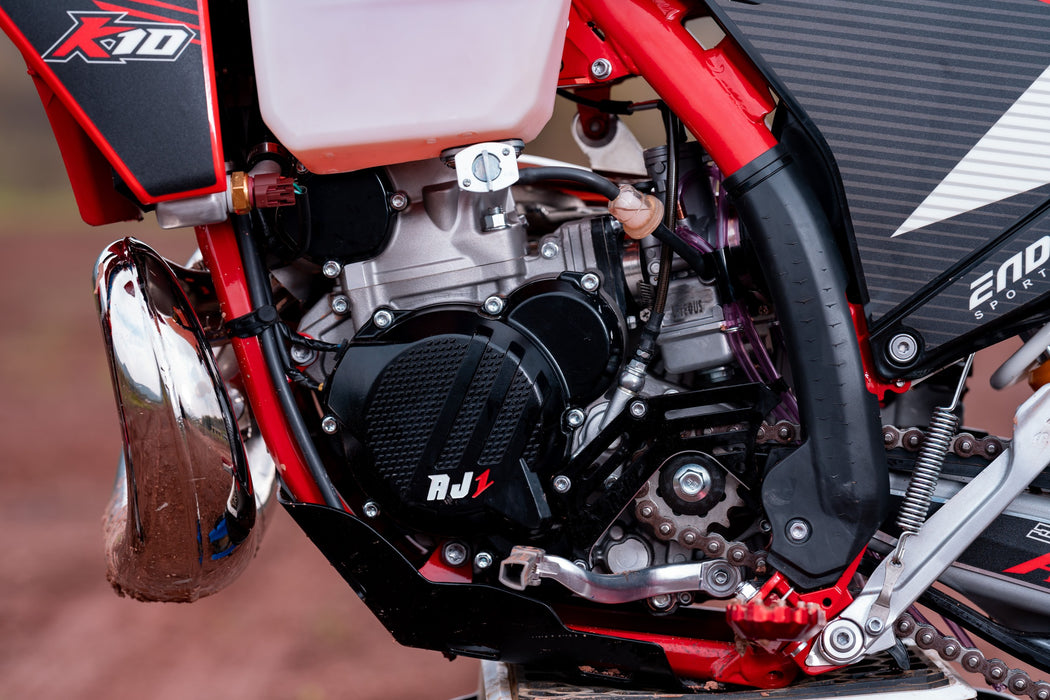

AJ1 self-developed 2-stroke engine, 293.2cc single-cylinder, 49hp, 43N·m max torque.
Secondary exhaust valve auto-adjusts by RPM for faster response and better fuel efficiency.
Adjustable valve opening RPM; high compression ratio; total engine weight only 26kg.
Reinforced low-pressure cast case minimizes heat-related deformation.
300W high-output magneto ensures stable power.
Optimized cooling passages for improved heat dissipation and durability.
6-pawl, 8-disc spring clutch with integrated steel housing and 3-stage adjustable pressure plate.

Vehicle Configuration
High-strength steel frame with low-pressure integrated rear swingarm for enhanced strength and reduced weight.
Radiator return hose and overflow tank are embedded within the frame for a clean, efficient layout.
Widened foot pegs made from CNC-machined 7075 aluminum alloy—durable and rider-friendly.
Equipped with a high-capacity, cold-start lithium battery that is lightweight and reliable.

Steering & Suspension
Eccentric steering stem with detachable nut allows rake angle adjustment for different riding needs.
All-new AJ1-tuned front suspension with adjustable compression/rebound, manual tuning knobs, quick air release, imported bearings, and DLC-coated fork tubes.
8-level damping adjustment, no dead zones, SKF oil seals—smooth response and strong feedback in all terrains.

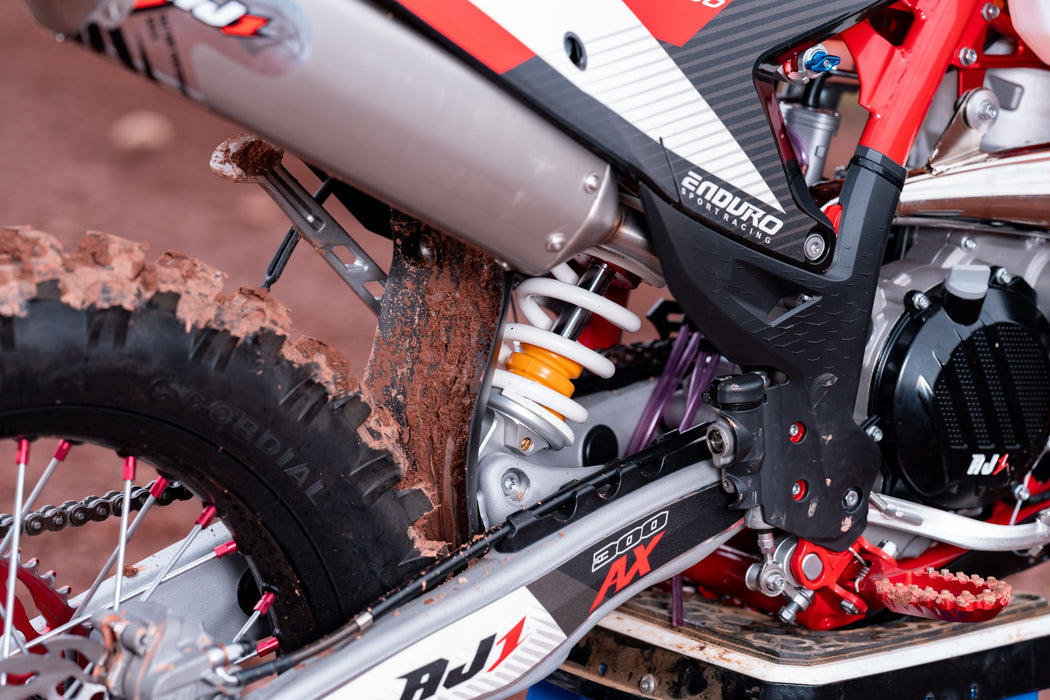

Progressive rear shock with high/low-speed compression and rebound adjustability. Handles big jumps without bottoming out, reducing rider fatigue.
AJ1-developed front and rear disc brakes with high-performance fluid, imported pads, and optimized rotor design—stable braking under all temperature conditions.

Wheels & Drivetrain
CNC-forged hubs, GLM rims, stainless spokes, 7075 aluminum nipples, imported bearings, and fluororubber oil seals.
All axles made from heat-treated 40Cr steel.
7075-T6 aluminum sprocket and KMC gold-purple chain with high strength, tensile resistance, and self-lubrication.
Wave-pattern air filter foam increases intake area; each unit is precisely oiled and weighed to prevent dust entry and extend engine life.
